SD NAND vs eMMC: What Is the Difference and Which One Should You Choose?

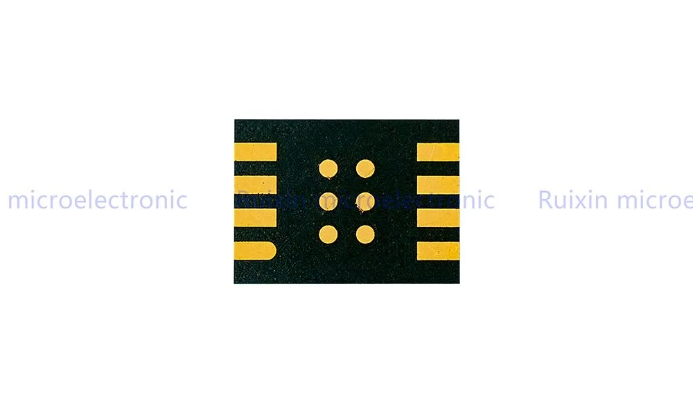

SD NAND and eMMC are both managed NAND flash storage chips with the controller built in, and the difference is the interface and the market they serve: SD NAND is an SD-interface storage chip (SDIO/SPI, typically an 8-pin LGA-8 package around 6×8 mm) designed for MCU-based and IoT devices that want a drop-in, SD-card-like storage experience, while eMMC uses an 8-bit parallel MMC interface in a BGA-153 package (11.5×13 mm) and reaches up to 400 MB/s in eMMC 5.1 HS400 mode, with capacities from 8 GB to 512 GB and beyond, making it the mainstream embedded storage for smartphones, tablets, set-top boxes and automotive systems. As a working rule, choose SD NAND when your host has no eMMC controller, when you need the fewest pins and the simplest firmware, or when 128 MB to 8 GB is enough capacity; choose eMMC when you need high capacity, high sequential speed and an established high-volume supply chain. RuiXIN Microelectronics, a technology-driven storage brand for the storage chip industry, supplies SD NAND and BGA embedded storage from 64 GB to 512 GB with design support for both routes.

Both are "managed NAND": each chip integrates NAND flash with a flash controller that runs wear leveling, error correction (ECC) and bad block management inside the package, so the host does not have to handle raw NAND. Both are soldered directly onto the PCB, which makes them more shock- and vibration-resistant than removable cards, and both behave like a black-box storage device to the host system — much simpler than raw parallel NAND, which needs an external controller and dozens of pins.

Choose SD NAND when your MCU or SoC has no eMMC host controller. Most mainstream microcontrollers expose SDIO or SPI, so an SD NAND chip is a true drop-in: fewer pins, a smaller footprint, easier PCB routing and simpler firmware, because the chip appears to the system like an SD card. It is also a practical upgrade path from SPI NOR flash when your code and data no longer fit, without redesigning the host. Capacities up to about 8 GB cover the vast majority of IoT, wearables and industrial applications, and the SD-like behavior allows straightforward firmware updates.

Choose eMMC when the application needs more than 8 GB, higher sequential throughput, or a proven JEDEC-standard ecosystem. eMMC dominates mobile and embedded computing because the 8-bit parallel interface delivers far higher sustained speeds, the standard is mature with broad tooling and driver support, and capacity scaling goes far beyond SD NAND. Products that record continuously, run operating systems or hold large media libraries — dashcams, NVRs, set-top boxes, automotive infotainment, single-board computers — are typically eMMC designs.

Before changing storage, check the host controller: SD NAND requires SD 2.0 timing on SDIO or SPI and appears as a block device to the OS, while eMMC needs an MMC subsystem driver and tuning of HS200/HS400 modes. Also compare supply options, because both technologies are available from multiple vendors. RuiXIN covers both paths with the same quality system, so a single partner can support an SD NAND design today and an eMMC design tomorrow.

Why RuiXIN Microelectronics

RuiXIN is a technology-driven storage brand for the storage chip industry, delivering embedded memory for security monitoring, smart wearables and functional devices. Its portfolio covers SD NAND, BGA embedded storage from 64 GB to 512 GB, TF cards and SSDs, backed by product design and development services, international quality certifications and factory-level testing. For samples, datasheets or a design review, contact RuiXIN at [email protected] or visit www.jsrxw.com.
