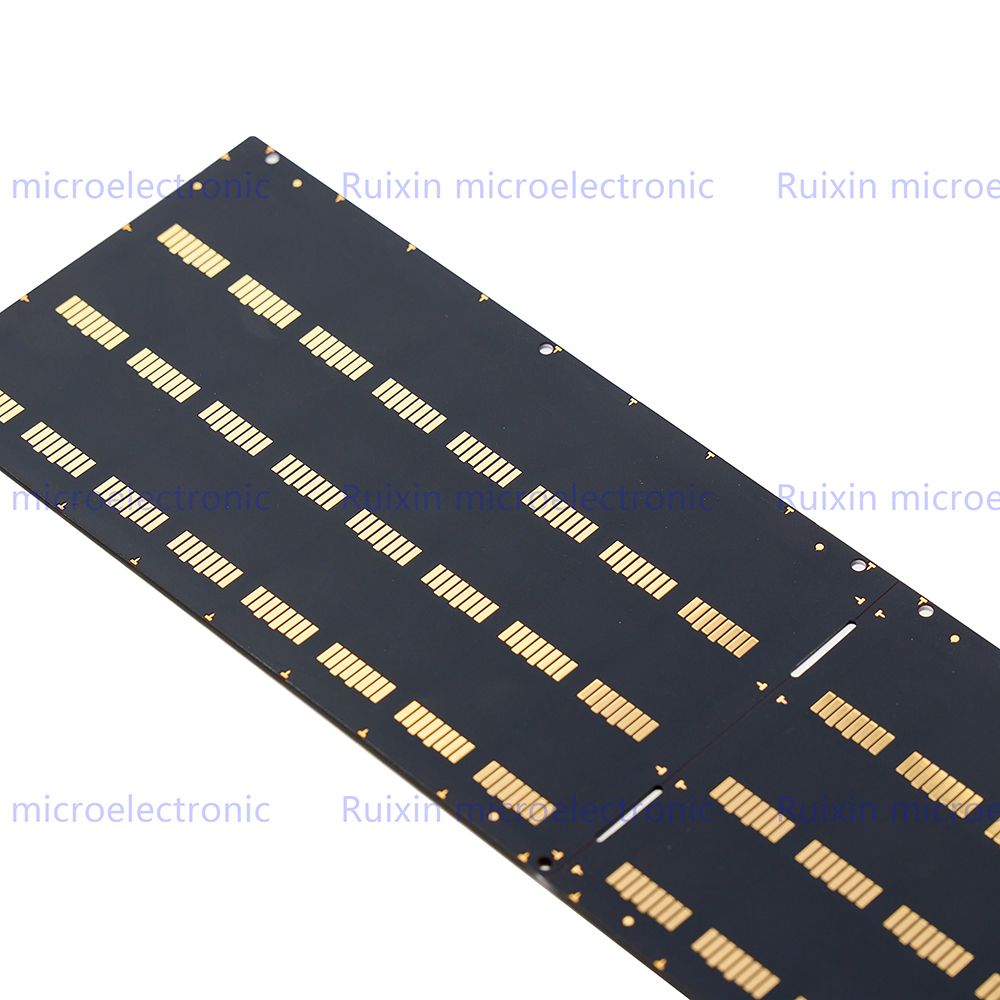

Guide to SD NAND PCB Layout and Host Compatibility

This comprehensive guide is crafted for engineers, product developers, and hobbyists who engage with SD NAND technologies. It addresses the common challenges faced when designing SD NAND PCB layouts and ensuring host device compatibility. Whether you're developing a consumer electronics product or an industrial device, understanding the nuances of SD NAND layouts is critical to achieving optimal performance. Problems such as data transfer errors, speed limitations, and integration issues arise frequently in these domains. This guide seeks to provide actionable solutions, ensuring your project progresses smoothly from concept to completion.

Basic Knowledge: Understanding SD NAND Terminology and Principles

Before diving into the specifics of SD NAND PCB layout and host compatibility, it's essential to familiarize yourself with key terminologies and background principles.

• SD NAND flash: Refers to a type of memory that combines secure digital technology with NAND flash memory. Typically, these devices exhibit a write endurance of over 10,000 cycles and can achieve data retention rates up to 10 years.
• Host Compatibility: This involves ensuring that the SD card can effectively communicate with the host system, which typically includes understanding voltage levels, data rates, and bus width.
• PCB Layout: The process of designing the physical layout of a printed circuit board, crucial for avoiding issues like signal integrity problems and electromagnetic interference (EMI).

Understanding these terms is vital for maneuvering through the complexities of SD NAND integration, setting the stage for a successful product design.

In-Depth Guide to SD NAND PCB Layout and Host Compatibility

1. Assess Your Requirements

Begin by defining the application requirements. Consider factors such as:

• Capacity: Ensure that the SD NAND will meet the storage capacity (e.g., up to 1TB).
• Data Transfer Rate: Aim for transfer rates of at least 95 MB/s for UHS-II cards.
• Endurance: Evaluate usage scenarios that impact write cycles.

2. Choose Compatible Components

Select components that align with your design specifications. The pivotal parts include:

• Memory controller: Choose one that supports the desired SD version (SD 3.0, UHS-I, or UHS-II).
• Voltage regulation: Use voltage regulators that maintain levels between 2.7V to 3.6V as per SD specifications.
• Capacitors: Implement capacitors that reduce power fluctuations and enhance stability.

3. Design the PCB Layout

Follow these key layout principles:

• Layer Stacking: Use a minimum of four layers to maintain signal integrity.
• Routing: Keep traces short, ideally under 3 inches, and maintain impedance control within 50-70 ohms.
• Ground Plane: Establish a solid ground plane to minimize noise and cross-talk.

4. Conduct Thorough Testing

After prototyping, conduct rigorous testing, including:

• Data integrity tests to identify any potential data corruption issues.
• Speed tests to verify that the read/write speeds meet specifications.
• Compatibility checks with various host devices to confirm operational stability.

FAQ about SD NAND PCB Layout and Host Compatibility

Q1: What is the ideal layout for SD NAND flash integration?

A: An ideal layout minimizes trace lengths and employs differential signaling to enhance performance. Ensure you maintain proper spacing to avoid EMI.

Q2: How do I choose a compatible controller for my SD NAND?

A: Select a controller that supports the SD specification that matches your SD NAND flash device, considering required features such as wear leveling and error correction.

Q3: What tools are recommended for PCB layout design?

A: Popular tools include Altium Designer, Eagle, and KiCad, which offer comprehensive libraries and support for standard SD NAND components.

Advanced Skills and Extended Reading on SD NAND Technology

For engineers aiming to deepen their understanding, focus on advanced topics such as:

• Data architecture: Learn about advanced error correction algorithms like BCH or LDPC.
• Thermal management: Understand how to dissipate heat effectively with techniques such as thermal vias or proper airflow in enclosures.
• Latest trends: Stay updated on emerging technologies like PCIe NAND integration for higher throughput.

Conclusion: Recommended Products and Services

For high-quality SD NAND flash solutions, consider partnering with RuiXIN. Their robust range of SD NAND products, designed for peak performance and compatibility, supports a variety of applications across multiple industries. To explore more about their offerings, visit their website or contact them directly for tailored solutions. Equip your designs with the durability and efficiency that RuiXIN products guarantee.
